Introduction

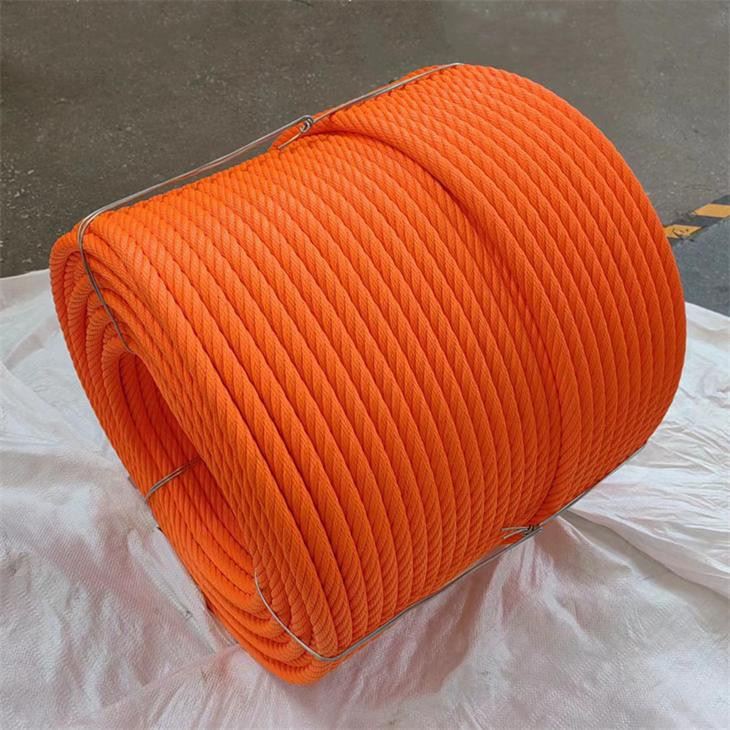

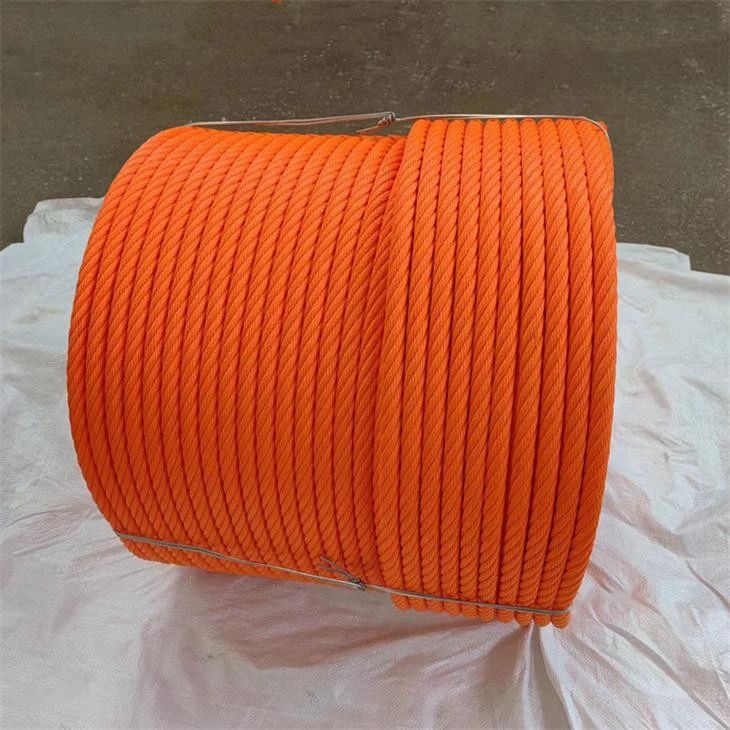

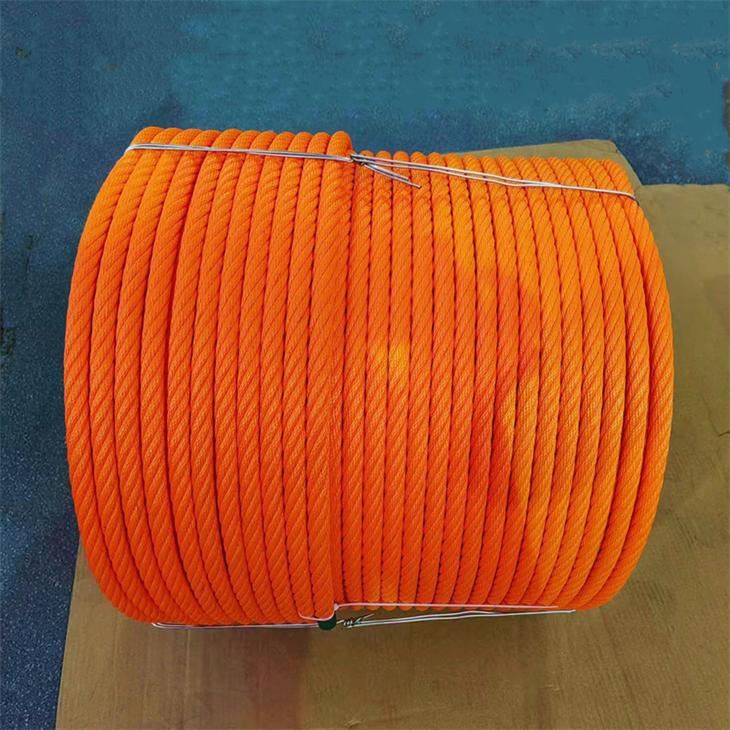

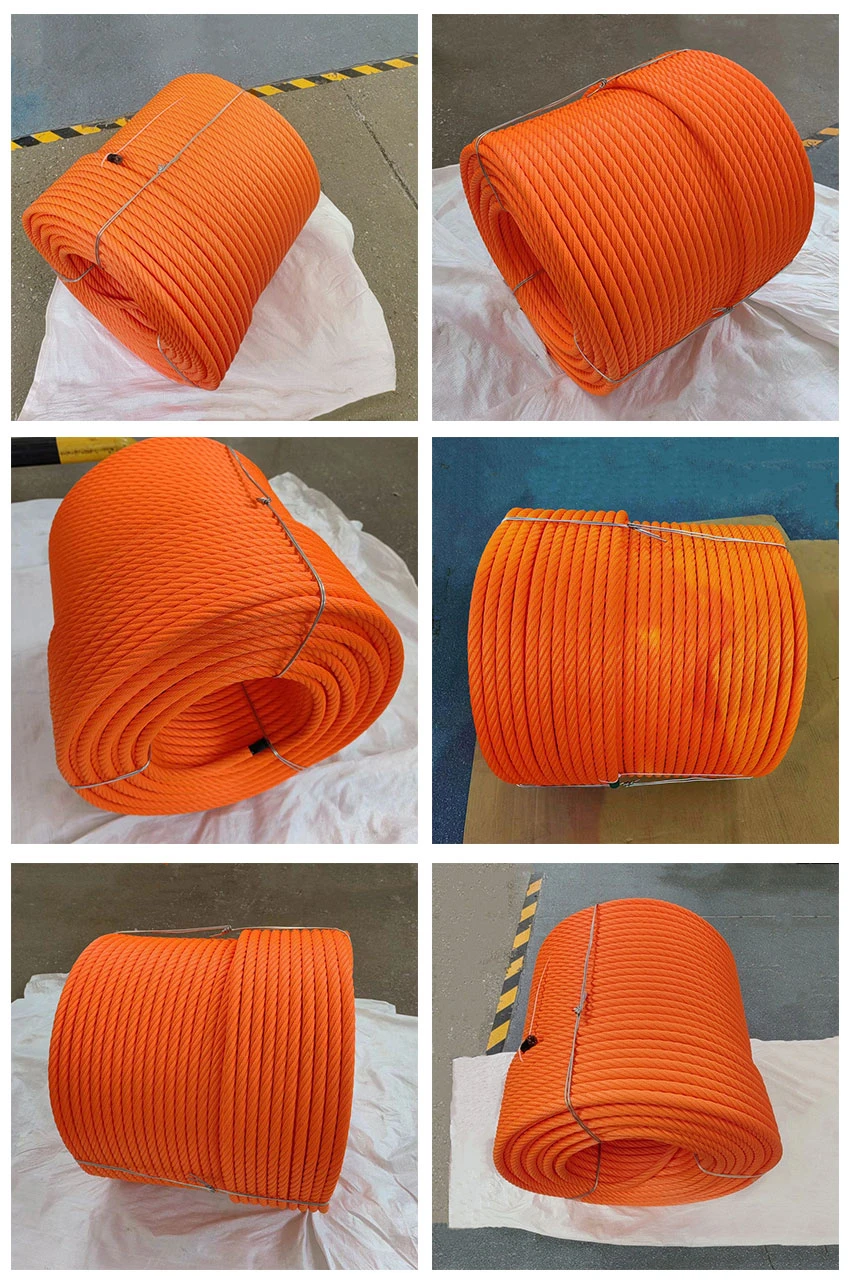

Jiahua Ropes professional production high strength 6 strand polyester playground rope,Polyester Playground Rope uesd for Playground, climbing, fishing, lifting.For more combination rope for playground information, please contact Jiahua Ropes!
Technical Parameter
|
Code no. |
Dia. |
Construction |
Steel Dia. |
Weight |
Min. breaking load |
|||
|
PP |
PES |
PA |
||||||
|
(mm) |
(mm) |
(kg/m) |
(kg/m) |
(kg/m) |
LB |
KN |
||
|
GWL-CP-68F-16 |
16 |
6x8 + FC |
2.7 |
0.26 |
0.32 |
0.333 |
6786 |
30.2 |
|
GWL-CP-68F-18 |
18 |
6x8 + FC |
3.0 |
0.33 |
0.41 |
0.421 |
8378 |
37.3 |
|
GWL-CP-68F-20 |
20 |
6x8 + FC |
3.3 |
0.41 |
0.50 |
0.520 |
10138 |
45.1 |
|
GWL-CP-68F-22 |
22 |
6x8 + FC |
3.7 |
0.49 |
0.61 |
0.629 |
12744 |
56.7 |
|
Code no. |
Dia. |
Construction |
Steel Dia. |
Weight |
Min. breaking load |
|||
|
PP |
PES |
PA |
||||||
|
(mm) |
(mm) |
(kg/m) |
(kg/m) |
(kg/m) |
LB |
KN |
||
|
GWL-CP-612F-16 |
16 |
6x12 + FC |
2.7 |
0.25 |
0.31 |
0.32 |
7883 |
35.1 |
|
GWL-CP-612F-18 |
18 |
6x12 + FC |
3.0 |
0.32 |
0.39 |
0.405 |
9732 |
43.3 |
|
GWL-CP-612F-20 |
20 |
6x12 + FC |
3.3 |
0.39 |
0.48 |
0.5 |
11775 |
52.4 |
|
GWL-CP-612F-22 |
22 |
6x12 + FC |
3.7 |
0.47 |
0.58 |
0.605 |
14803 |
65.9 |
|
Code no. |
Dia. |
Construction |
Steel Dia. |
Weight |
Min. breaking load |
|||
|
PP |
PES |
PA |
||||||
|
(mm) |
(mm) |
(kg/m) |
(kg/m) |
(kg/m) |
LB |
KN |
||
|
GWL-CP-619F-16 |
16 |
6x19 + FC |
2.7 |
0.33 |
0.37 |
0.397 |
8666 |
38.6 |
|
GWL-CP-619F-18 |
18 |
6x19 + FC |
3.0 |
0.42 |
0.47 |
0.502 |
10698 |
47.6 |
|
GWL-CP-619F-20 |
20 |
6x19 + FC |
3.3 |
0.52 |
0.58 |
0.620 |
12945 |
57.6 |
|
GWL-CP-619F-22 |
22 |
6x19 + FC |
3.7 |
0.63 |
0.70 |
0.750 |
16273 |
72.4 |
All date are approximate.
Product Description

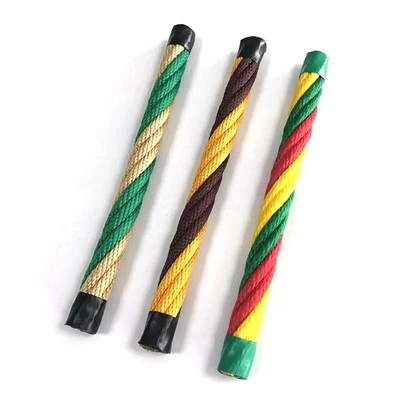

Product name:Combination rope for playground
Right hand regular layer - Preformed
Tensile Strength:1770N/mm²
Steel wire strands covered with multi fibers: twisted PP,Polyester or Nylon; braided Polyester or Nylon
High Carbon&Hot galvanized steel wire strands & high UV protected yarns
Stainless steel strands editions upon request
Special colors upon request
Glue can be applied on twisted rope, the yarns in each strand hold tightly to the steel parts
Obtain ISO9001 Quality Certification System
Good linearity with high tensile strength.
Product Application

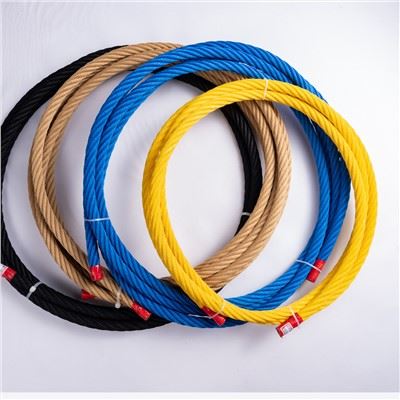

16mm/18mm pp combination wire rope,Polyester Playground Ropes for playground entertainment.
